Single-Layer PP/PS Sheet Extrusion Machine

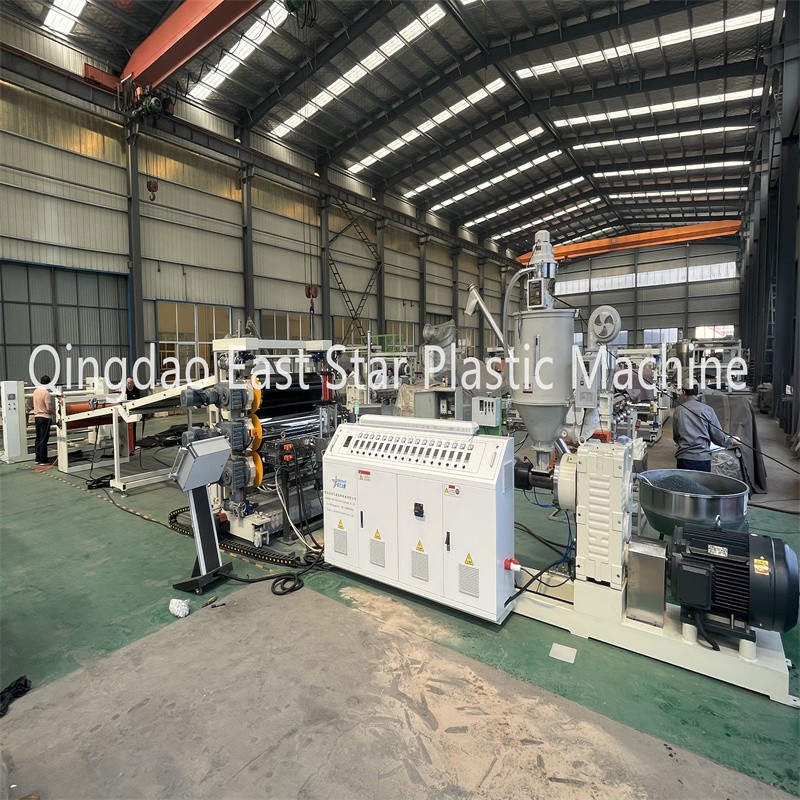

This single layer pp ps pe sheet machine line including sj90 single screw extruder, hydraulic automatic net changer, die head mold, three rollers calender, cooling bracket, hall off, double station winding machine,
can make sheet width from 600-1050mm, thickness from 0.4-2mm .
Product introduction
PE/PP/PS plastic sheet extrusion machine prodcution line

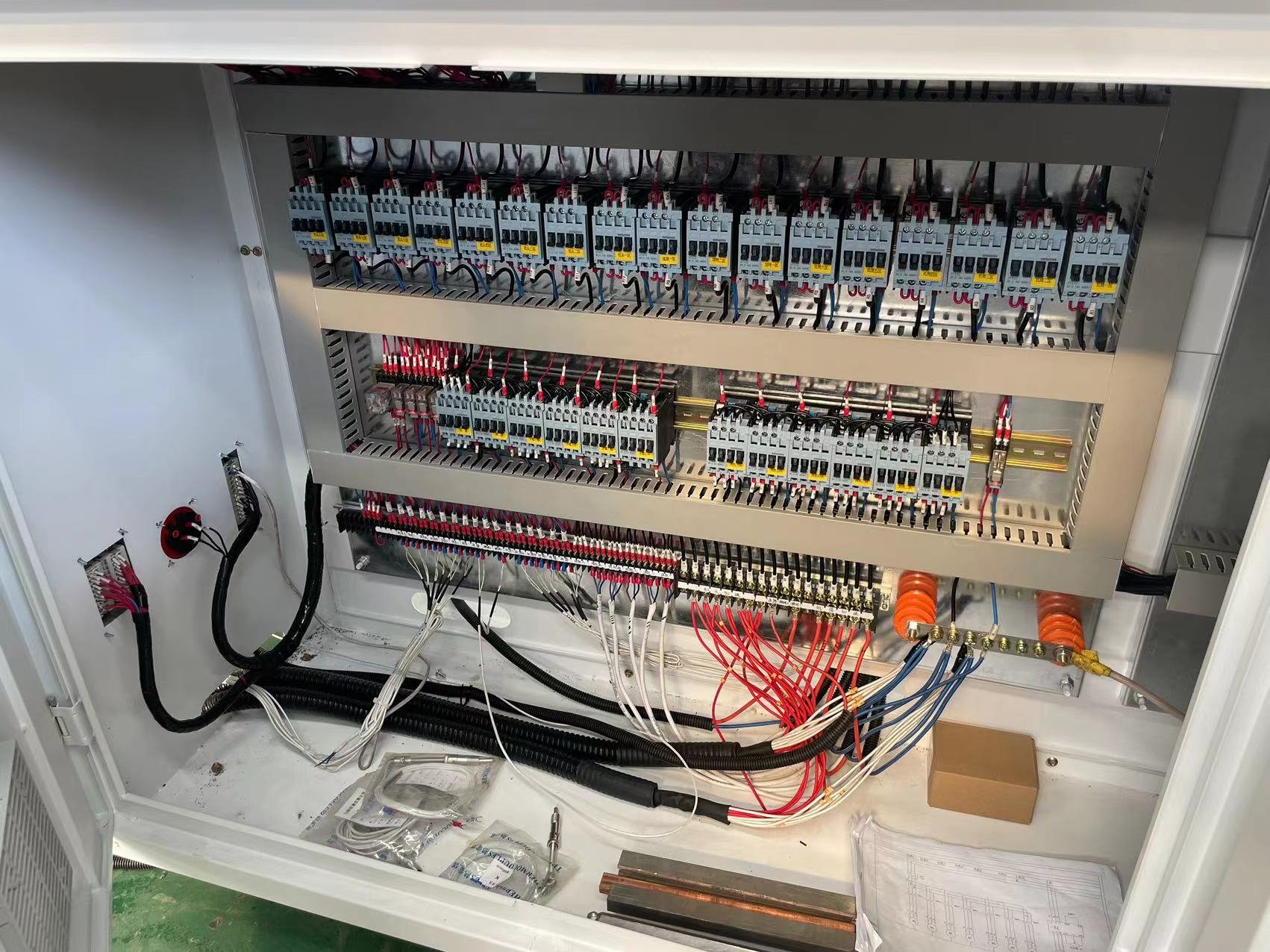

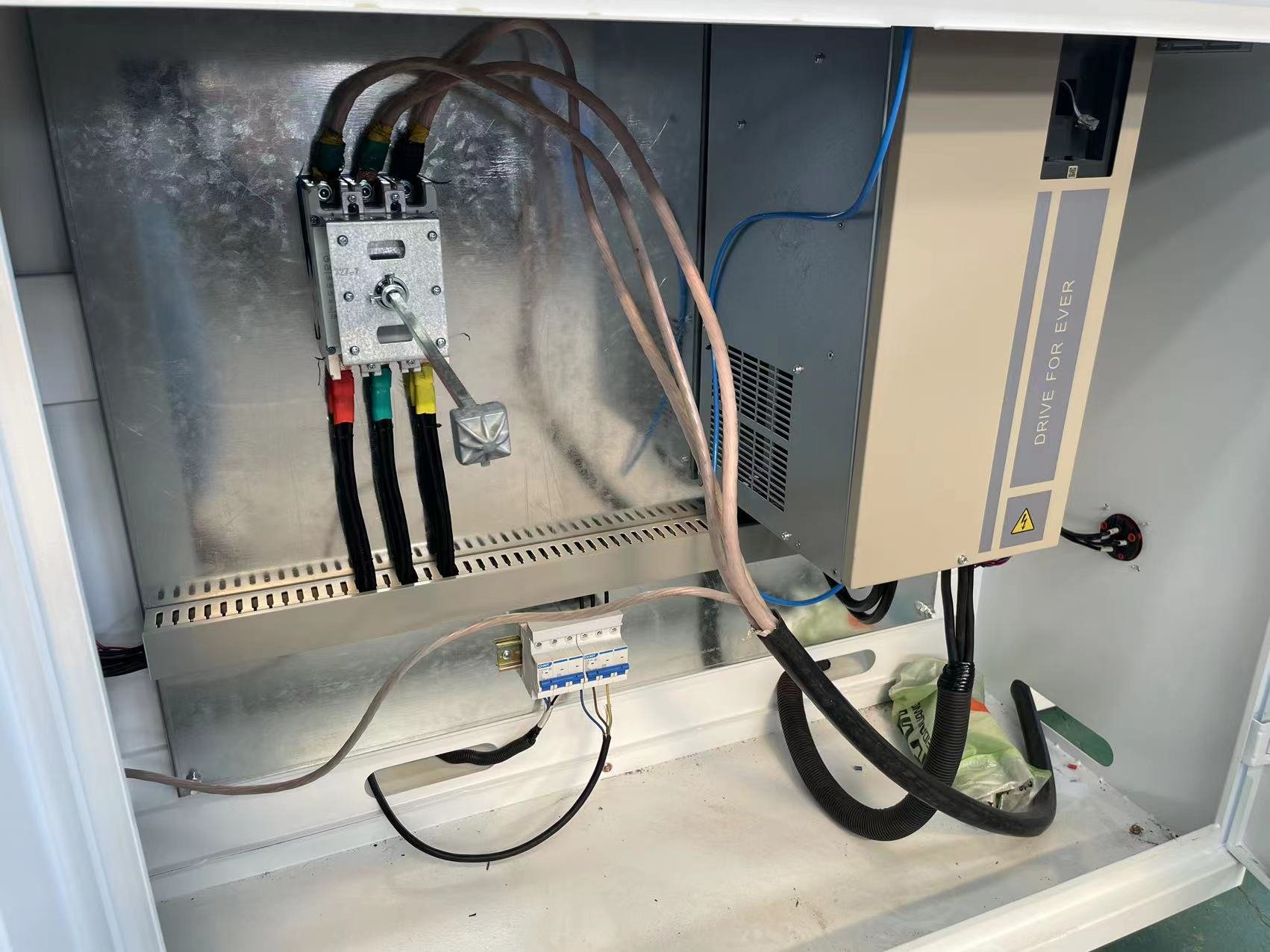

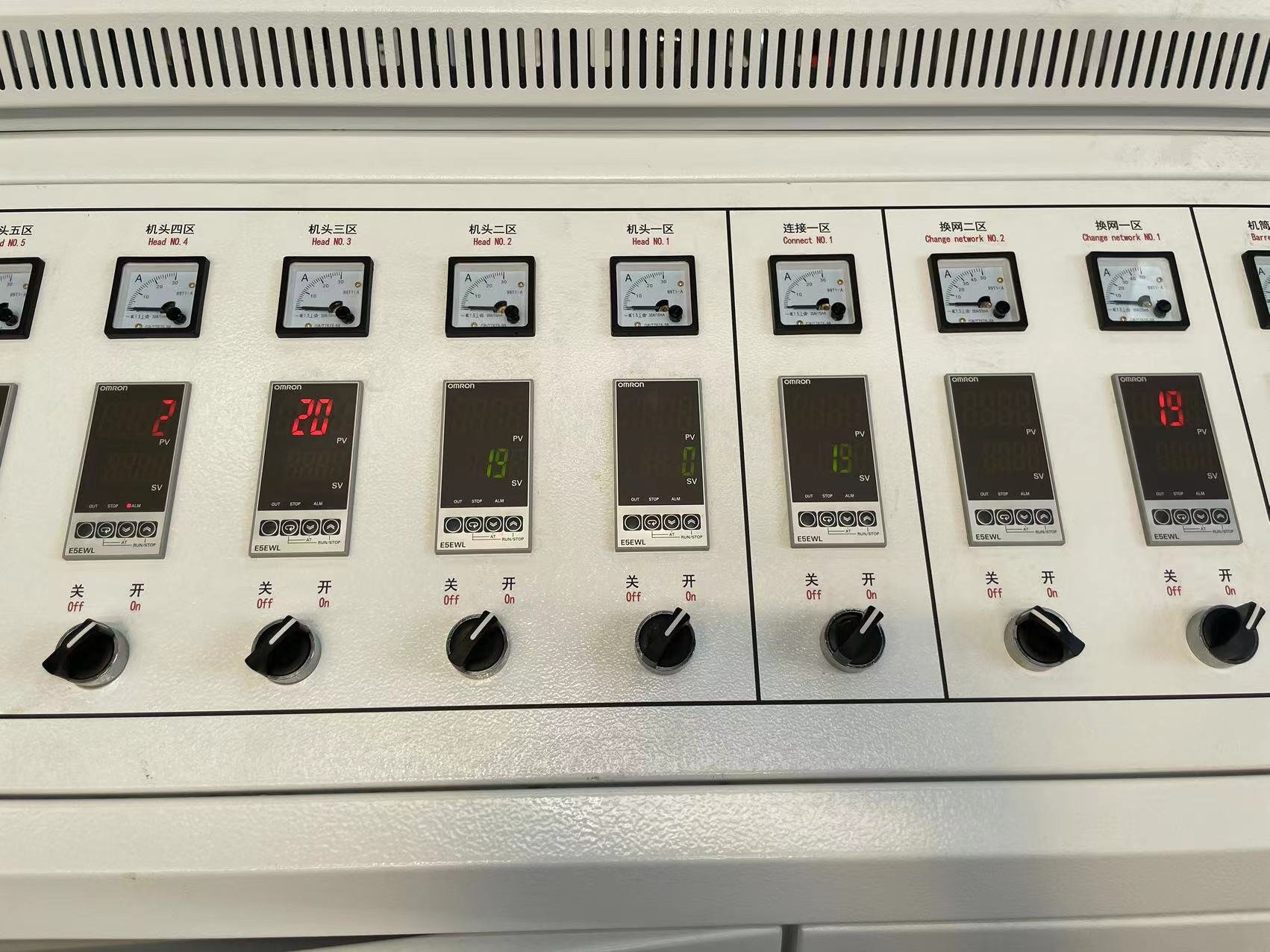

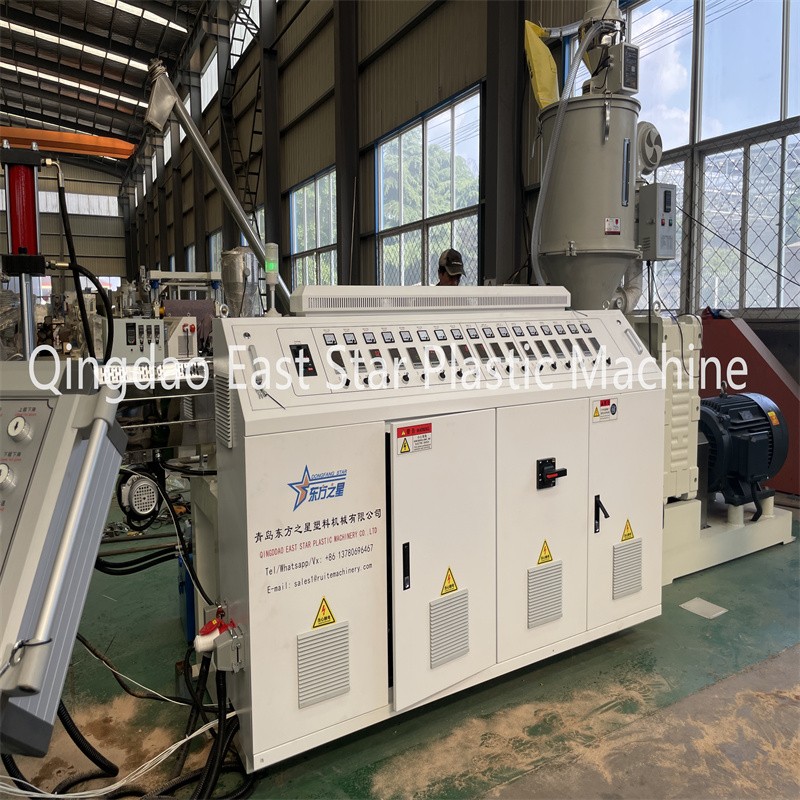

The SJ90 single-screw extruder produced by our company adopts a 75-kilowatt direct drive motor, a hard-toothed 250-type reducer, a screw winding length-to-diameter ratio of 33:1, six-zone heating for the body, and a cast aluminum heating ring. Stainless steel mirror protection cover, six-zone independent fan temperature control, Siemens low-voltage electrical components for electrical control, Omron intelligent temperature control meter, six-zone temperature control for the fuselage, two-zone temperature control for the screen changer, one-zone temperature control for the connection, and eight machine heads Zone temperature control.
\

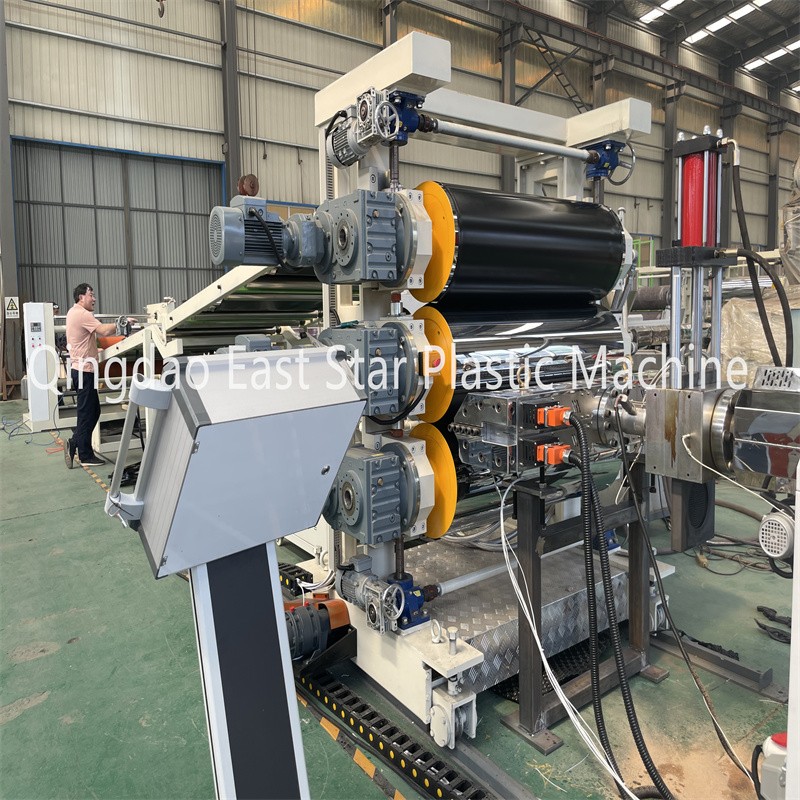

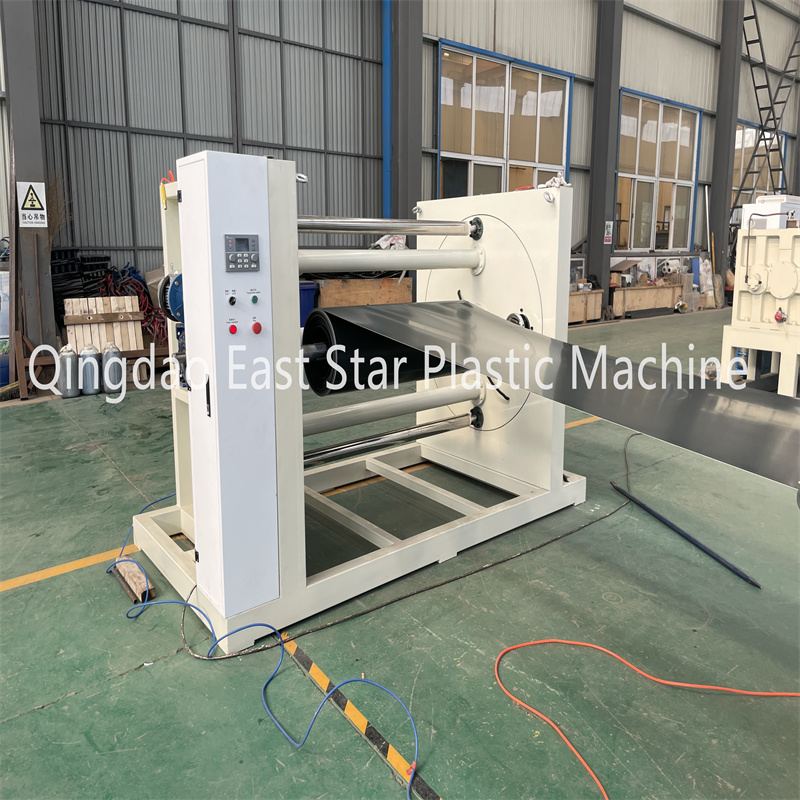

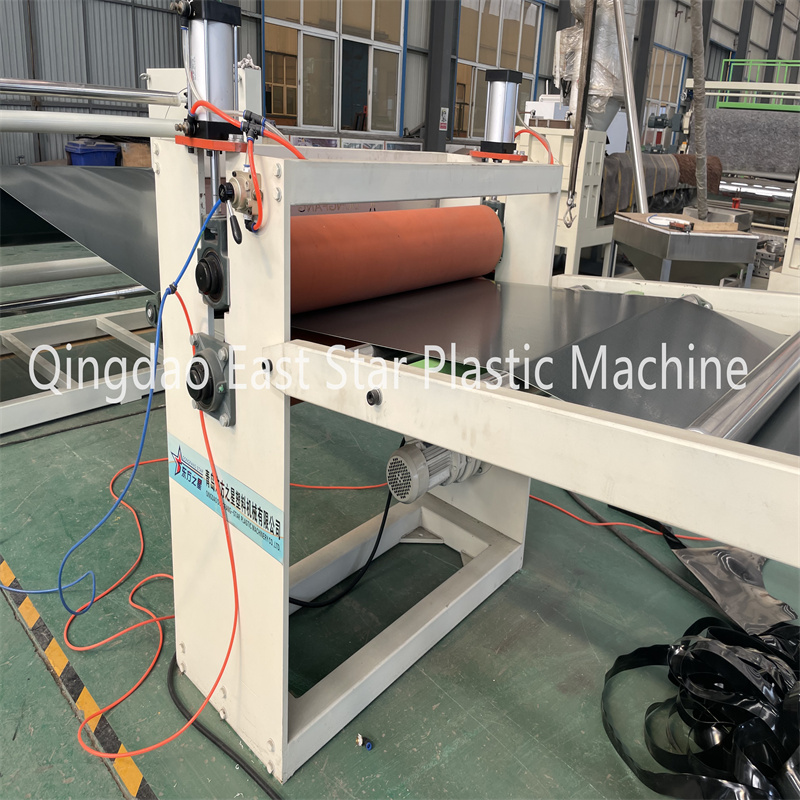

The production line is equipped with hydraulic automatic screen changer, T-shaped hanger type elastic adjustable mold, vertical three-roller calender, three-in-one water temperature machine, stainless steel cooling bracket, rubber tractor, double-station air expansion shaft winder .
After secondary processing, the produced sheet is mainly used in chemical industry, food industry, anti-corrosion industry, electric power equipment, environmental protection equipment, etc.
