Root Controller Making Machine

The Root Controller Making Machine is a specialized piece of equipment designed to efficiently produce root controllers, which are essential in managing and regulating the growth of plant roots. Crafted with precision and attention to detail, this machine offers a reliable and cost-effective solution for a wide range of agricultural, landscaping, and construction applications.

Key Features and Benefits:

1.Material Versatility: The Root Controller Making Machine is capable of working with various materials, including Polyethylene (PE), PVC, PP, PET, and PS. This versatility allows for the production of root controllers tailored to specific requirements and environments.

2.High Production Speed: Equipped with advanced technology, the machine boasts a high production speed, allowing for the efficient manufacturing of root controllers in large quantities. This enhances productivity and reduces production costs.

3.Precision Forming: The machine is designed to achieve precise forming of the root controllers, ensuring consistent quality and dimensions. This precision ensures that the root controllers fit seamlessly into their intended applications and perform as expected.

4.Easy Operation and Maintenance: The Root Controller Making Machine is designed for ease of operation, with intuitive controls and minimal training required. Additionally, it is built with durability and reliability in mind, reducing the need for frequent maintenance and repairs.

Product introduction

Technical parameters

● Specification for width of sheet : 310~430mm ， thickness: 0.15~0.9mm.

● Forming area (maximum): 400x600 square mm, working efficiency 10~18 times / min.

● Power used: 380 volts 3-phase four lines , maximum power 13KW

● Overall size (mm) ： length 2800mm*width 950mm* height1500mm

Structural characteristics

● The machine adopts the combination of hydraulic, mechanical and electrical appliances, so as to realize the automatic continuous work of material delivery, forming, suppression, and it can realize the adjustment of each procedure in the working process, high automation and production efficiency, and the operation is convenient and easy to learn.

● Adopt PLC setting program, touch screen (text) human-computer interface operation, can make automatic, manual conversion and adjustment, easy to operate, safe and reliable.

● Adopt special chain with claw and conveying sheet, which is suitable for various concave and convex modes and has stable and reliable work.

● The plastic heater is made with far-infrared ceramic heater and solid-state relay for point temperature control; and the constant temperature setting can play the effect of double control insulation and heating.Note: There are two alternative heating methods in our factory, <1> single-sided (top) heating, <2> double-sided (upper and lower) heating.Maximum heating power: upper heater 9 kW, lower heater 6 kW.After the equipment warms up normally and keeps a constant temperature, the power consumption can decrease by more than 40%.

● Feed guide rail: adopt high quality aluminum alloy , the advantages of high strength, high temperature resistance and no deformation.There is a cooling water channel inside, so that it is not easy to damage the material in the feeding process, to play a good product cooling, fast shaping effect.

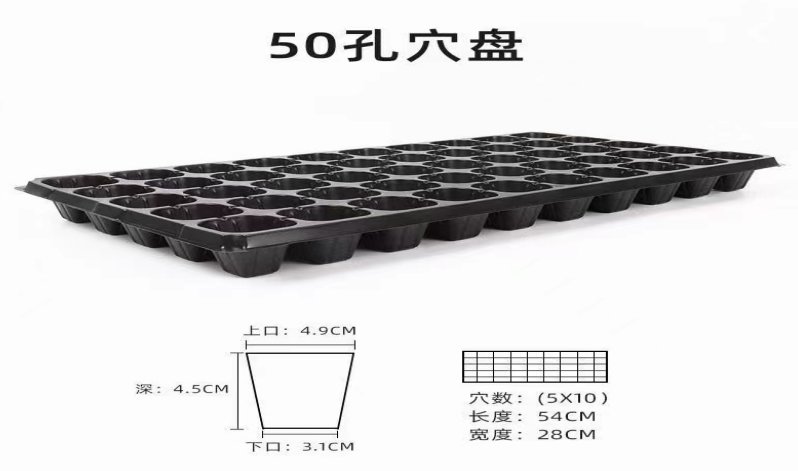

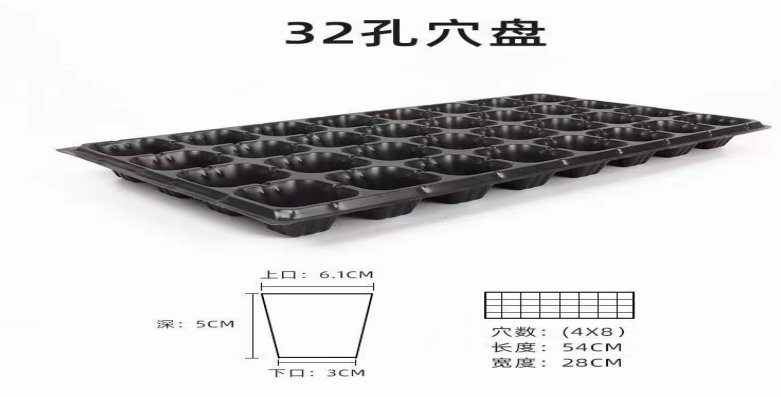

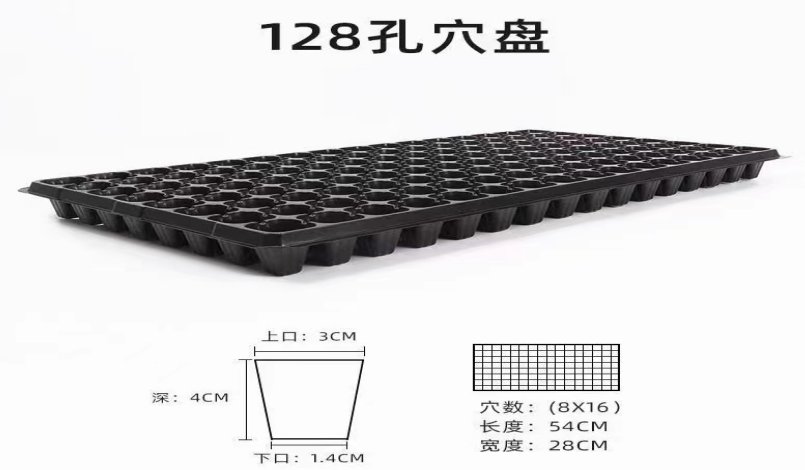

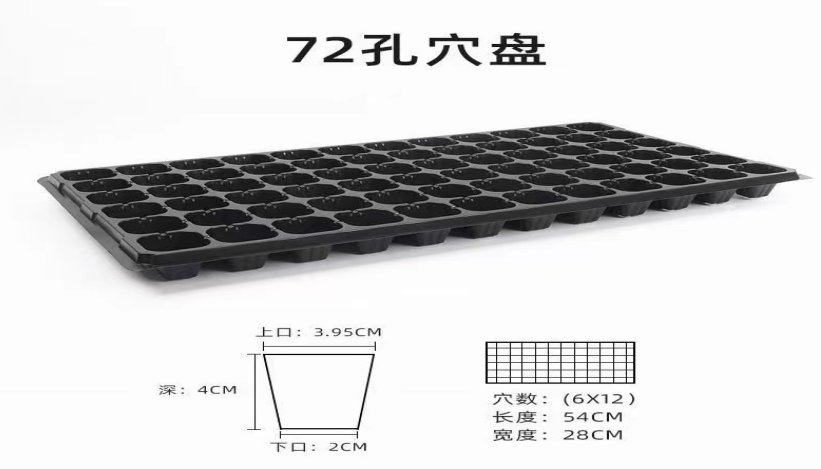

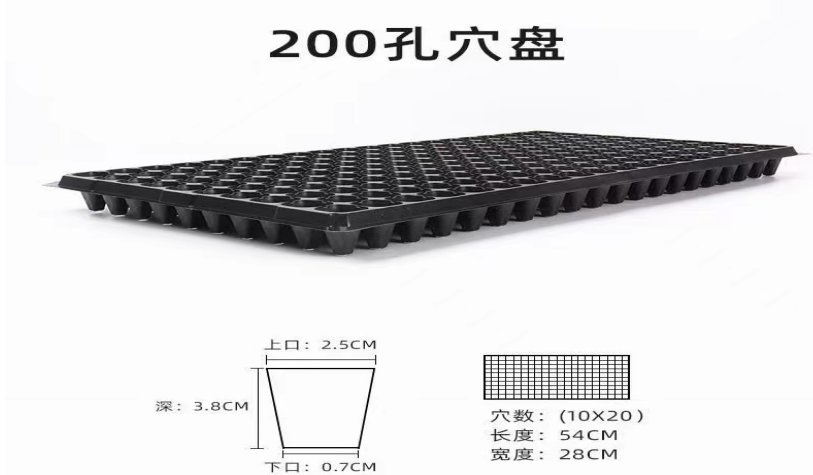

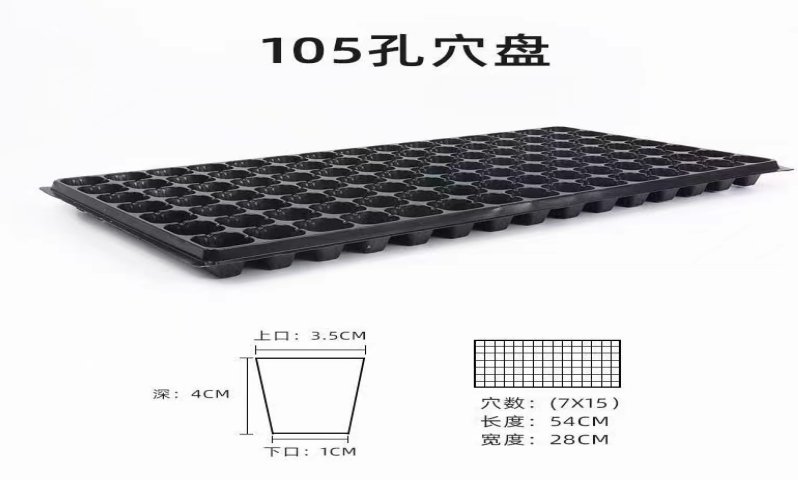

Standard mold Specification: (we also support customized non-standard specification size mold according to sample or drawings)
