Pe Plastic Sheet Extrusion Machine
Introduction:
The PE Plastic Sheet Extrusion Machine is a highly efficient and versatile machine designed specifically for the production of polyethylene (PE) plastic sheets. This machine integrates advanced extrusion technology with precision engineering to deliver high-quality, uniform sheets for a wide range of applications.
Key Features:
1.Precision Extrusion: Equipped with a precision extruder, the machine ensures uniform and consistent extrusion of PE material, resulting in sheets with impeccable quality and thickness control.
2.High Output Capacity: Capable of producing sheets at a high output rate, the machine is suitable for both small-scale and large-scale production needs.
3.Multi-Layer Capability: The machine can be configured for mono-layer or multi-layer extrusion, up to 5 layers, allowing for the production of sheets with enhanced properties and performance.
4.Wide Range of Thicknesses: Capable of producing sheets with a wide range of thicknesses, from 0.2 mm to 2 mm or more, depending on the model and configuration.
Product introduction
ABS sheet products are mainly used in automotive interior instrument panel systems, sub-instrument panel systems, inner panels and seats. The production line is mainly composed of extruder, die, three-roll calender, cooling table, pulling machine and cutting machine.

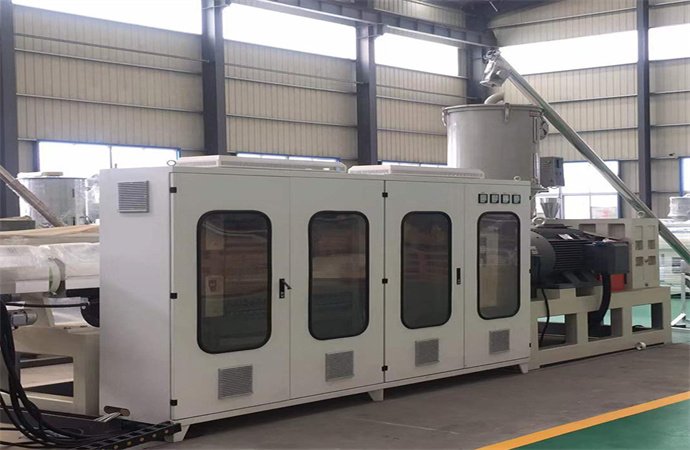

1. extruder
Appropriate single-screw extruder (exhaust or not) should be chosen on the basis of different materials. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.

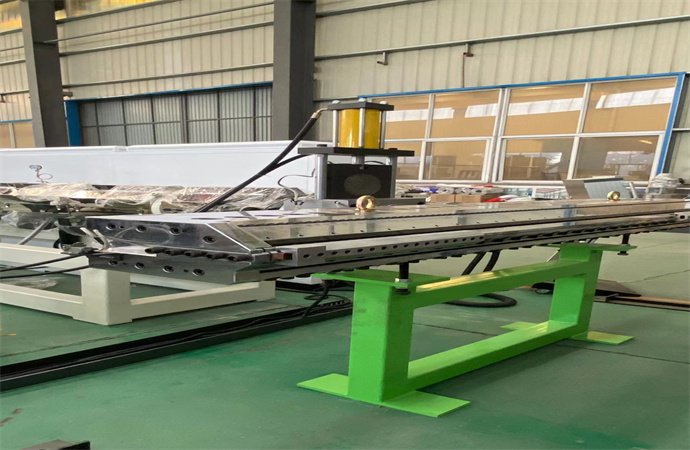

2. Mold for plastic sheet machine
The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage. Reasonable structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accepted to regulate flow-distribution and guarantee even thickness of plates (sheets).

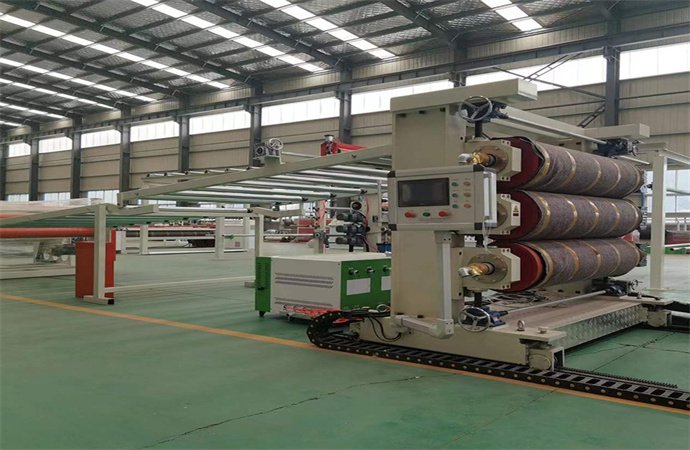

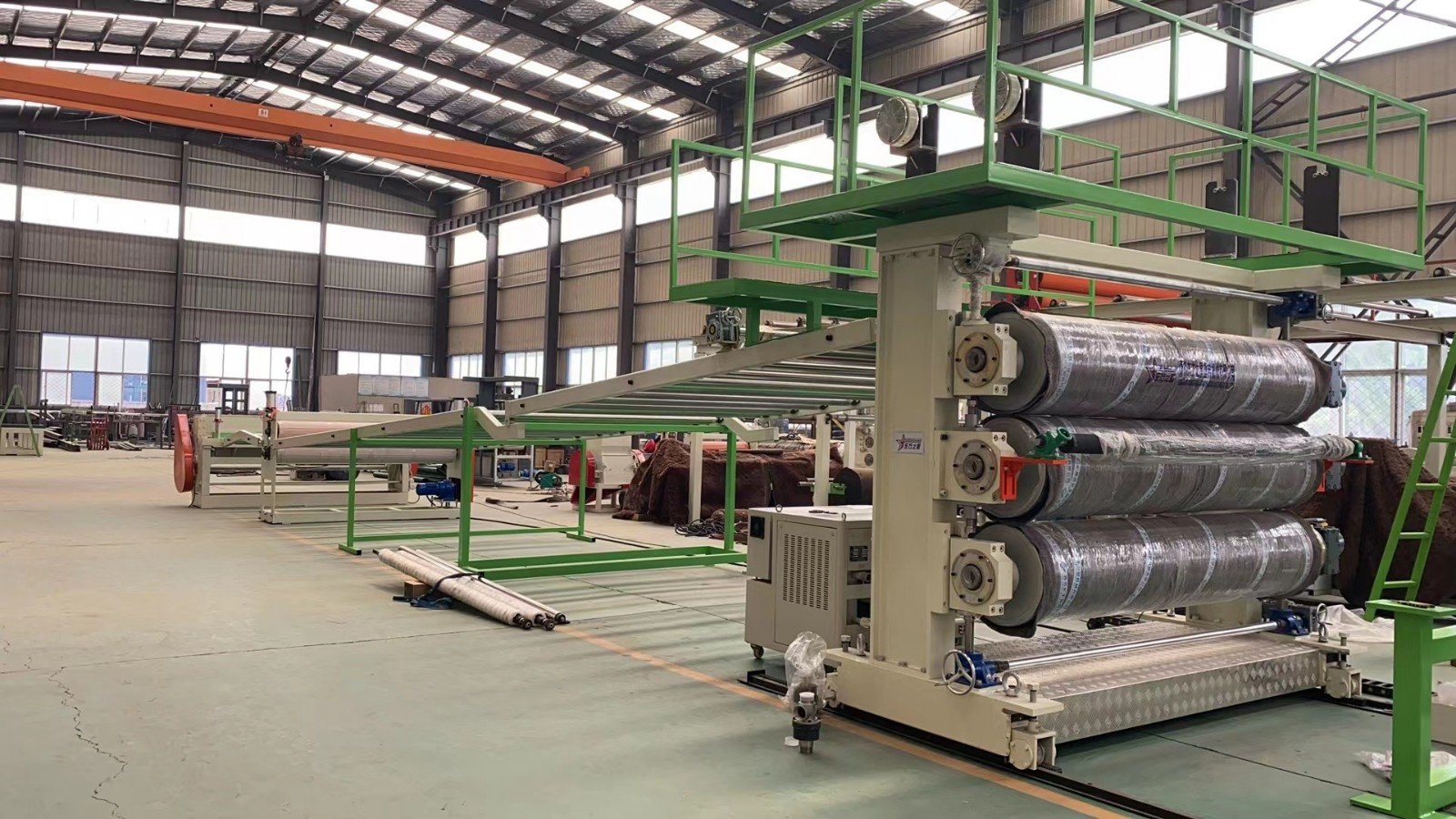

3. Three roller calendaring machine for Plastic sheet extrusion machine
Inclined and vertical three-roller calendaring machine should be chosen according to the thickness of the plates(sheets). Temperature controller operates separately and gap among the three rollers can be adjusted freely, and the central roller has special design of regulating angle. Both ensure the excellent calendaring effect and even thickness of plates (sheets).

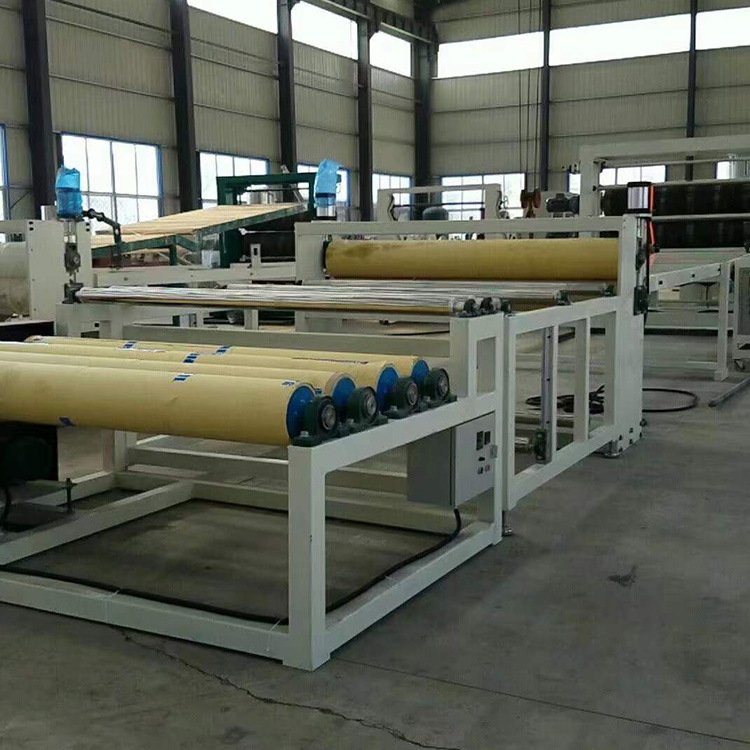

4.Cooling bracket for Plastic sheet extrusion machine
Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of plates (sheets) and quality of edge.
5.Side cutting for plastic sheet extrusion machine
Side cutting for cutting the width of the Plastic sheet.
Cutting by: high quality alloy knives.
Quantity of Knives: two sets
Cutting edge recycling: with online crushing system

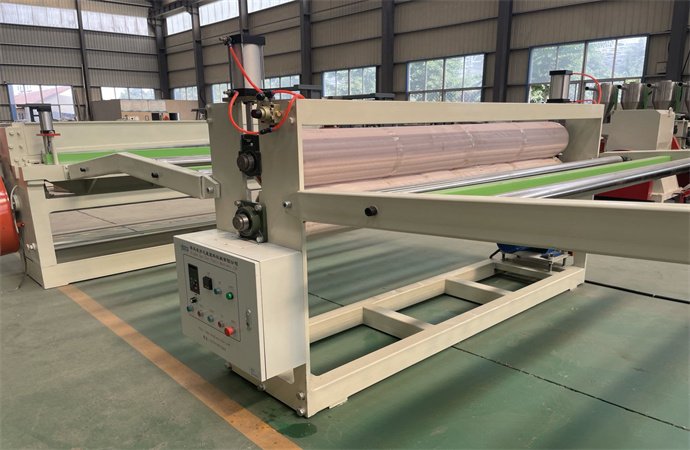

6. Haul off machine for plastic sheet extrusion machine
Double roller haul off machine
Roller material: rubber
roller up and down: by cylinder control
Speed control: Frequency
7.Cutting machine for Plastic sheet extrusion machine
It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.
